VeraSol Product Database

Snapshot Details

Product Information

Brand Solar Run

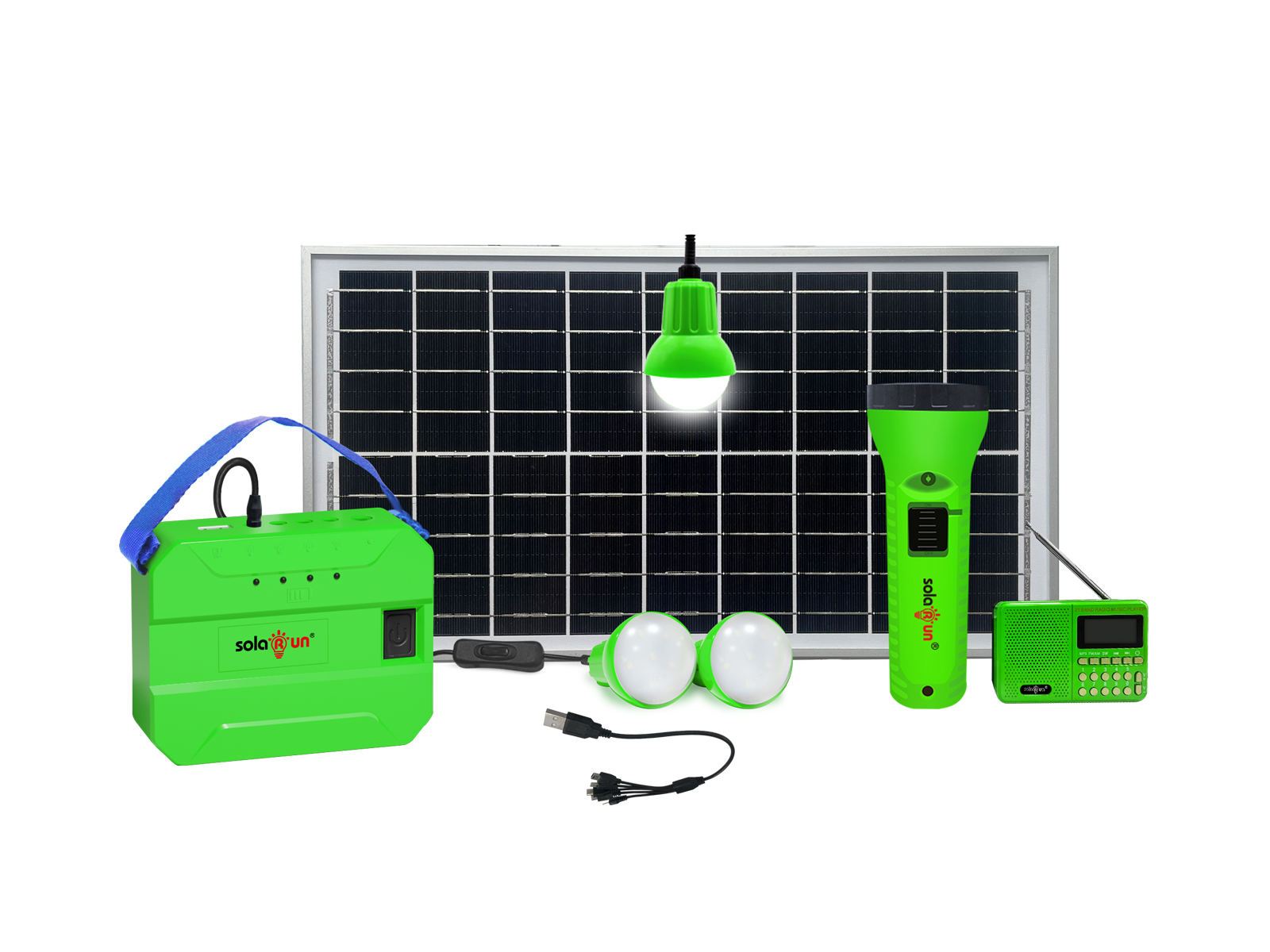

Product Name Solar Home Lighting System
Model Number SR06A31XY
Product Type Type of product dependent on the PV module maximum power where pico products are less than or equal to 10 W and solar home system kits are greater than 10 W up to 350 W Pico PV
Power Supply Type of current and power the product operates with, e.g. alternating current (AC) or direct current (DC) DC
PV Module Maximum Power [W] 10
PV Module Separate or Integrated Is the PV module integrated with the system or separate? Separate
Number of Light Points Number of light points included in the system including auxiliary lights (e.g. a torch). 3
Dimensions [l*w*h in cm] Dimensions of entire product in package 35*25*6.5
Mass [g] 2345
Warranty for Main Unit [months] 36
Other Warranty Information A 36-month warranty covering defects in the system. There is a 12-month warranty for the charge cable and radio.

Features

Pay-As-You-Go Option Does the product have a pay-as-you-go option? No
Mobile Phone Charging Is the product able to charge a mobile phone? Yes
Plug-and-Play Plug-and-play kits don't require tools at the time of installation, whereas non-plug-and-play products require connections. Yes
Product Family A product family covers a set of interchangeable components which combine to make two or more complete kits. All components and systems listed are considered to have met the applicable quality standards. No

Appliances

Advertised to Power TV Does the product advertise to power a TV on any consumer-facing information? No
Advertised to Power Fan Does the product advertise to power a fan on any consumer-facing information? Yes
Advertised to Power Radio Does the product advertise to power a radio on any consumer-facing information? Yes

Lighting Details

Main Unit Light Output [lm] Light output for the main lighting unit on highest setting not including auxiliary lights with their own battery. 430
Brightest Lamp Lumen Efficacy [lm/w] Lumen efficacy for brightest lamp included in the main unit on highest setting. 130
Auxiliary Lamp Light Output [lm] Light output for the brightest auxiliary light with its own battery on highest setting. 59
Auxiliary Lamp Lumen Efficacy [lm/w] Lumen efficacy for brightest lamp auxiliary light with its own battery on highest setting. 100
Total Light Output [lm] Light output of all light points including main lighting unit and any auxiliary lights. 479
Notes About Lighting Details N/A

System Performance

Total Lighting Service [lumen-hours/solar-day] 2250
Available Daily Electrical Energy [Wh/day] The available daily electrical energy generated by a system in a solar day is measured in watt-hours per day [Wh/day]. Based on an example use profile with all of the appliances advertised to run with system used simultaneously. 23
Main Lighting Unit Solar Run Time Used Alone [hours] Run time for the main unit assuming 5kWh/m2/day with lights on the highest setting and without any other loads used during the run time. 9.6
Main Lighting Unit Full Battery Run Time [hours] Full battery run time for the main lighting unit with lights on the highest setting. The run time is defined as the time until the output is 70% of the initial, stabilized output. Lighting full battery run time estimates do not account for mobile phone charging or other auxiliary loads. 11
Notes About System Performance N/A

Main Unit Battery

Ports

Testing Information

Quality Standards The version of quality standards that the product was evaluated towards. IEC TS 62257-9-8
Certification Status VeraSol Certified
Certification Expiration Date [MM/DD/YYYY] Indicates the date that the product's certification validity ends. 4/30/2025

Manufacturer Information

Contact Information info@solarunoffgrid.com
Website www.solarunoffgrid.com
Co-Branded Co-branded products reference the results of a fully-tested product and are the same product with a different brand name. No
Notes About Co-Branding N/A

Other Notes
