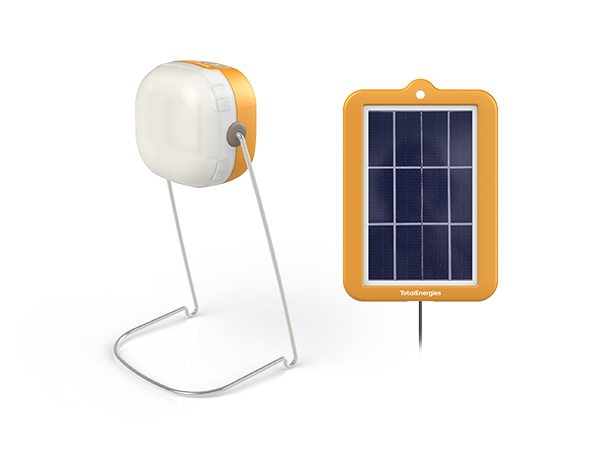

TotalEnergies | Sunshine 150

Return to the Page Header

Snapshot Details

  • Brand: TotalEnergies
  • Product Name: Sunshine 150
  • Model Number: TLL003
  • PV Module Maximum Power [W]: 2.4
  • Number of Light Points: 1
  • Main Unit Battery Chemistry: Li-ion
  • Certification Expiration Date: 1/31/2025
Product Information
  • Brand TotalEnergies
  • Product Name Sunshine 150
  • Model Number TLL003
  • Product Type tooltip Type of product dependent on the PV module maximum power where pico products are less than or equal to 10 W and solar home system kits are greater than 10 W up to 350 W Pico PV
  • Power Supply tooltip Type of current and power the product operates with, e.g. alternating current (AC) or direct current (DC) DC
  • PV Module Maximum Power [W] 2.4
  • PV Module Separate or Integrated tooltip Is the PV module integrated with the system or separate? Separate
  • Number of Light Points tooltip Number of light points included in the system including auxiliary lights (e.g. a torch). 1
  • Dimensions [l*w*h in cm] tooltip Dimensions of entire product in package 10*9.9*6.7
  • Mass [g] 810
  • Warranty for Main Unit [months] 24
  • Other Warranty Information A 24-month warranty covering manufacturing defects from early components failure under normal use.
Features
  • Pay-As-You-Go Option tooltip Does the product have a pay-as-you-go option? No
  • Mobile Phone Charging tooltip Is the product able to charge a mobile phone? Yes
  • Plug-and-Play tooltip Plug-and-play kits don't require tools at the time of installation, whereas non-plug-and-play products require connections. Yes
  • Product Family tooltip A product family covers a set of interchangeable components which combine to make two or more complete kits. All components and systems listed are considered to have met the applicable quality standards. No
Appliances
  • Advertised to Power TV tooltip Does the product advertise to power a TV on any consumer-facing information? No
  • Advertised to Power Fan tooltip Does the product advertise to power a fan on any consumer-facing information? No
  • Advertised to Power Radio tooltip Does the product advertise to power a radio on any consumer-facing information? No
Lighting Details
  • Main Unit Light Output [lm] tooltip Light output for the main lighting unit on highest setting not including auxiliary lights with their own battery. 160
  • Brightest Lamp Lumen Efficacy [lm/w] tooltip Lumen efficacy for brightest lamp included in the main unit on highest setting. 140
  • Auxiliary Lamp Light Output [lm] tooltip Light output for the brightest auxiliary light with its own battery on highest setting. Not included
  • Auxiliary Lamp Lumen Efficacy [lm/w] tooltip Lumen efficacy for brightest lamp auxiliary light with its own battery on highest setting. Not included
  • Total Light Output [lm] tooltip Light output of all light points including main lighting unit and any auxiliary lights. 160
  • Notes About Lighting Details N/A
System Performance
  • Total Lighting Service [lumen-hours/solar-day] 1260
  • Available Daily Electrical Energy [Wh/day] tooltip The available daily electrical energy generated by a system in a solar day is measured in watt-hours per day [Wh/day]. Based on an example use profile with all of the appliances advertised to run with system used simultaneously. 7
  • Main Lighting Unit Solar Run Time Used Alone [hours] tooltip Run time for the main unit assuming 5kWh/m2/day with lights on the highest setting and without any other loads used during the run time. 7.9
  • Main Lighting Unit Full Battery Run Time [hours] tooltip Full battery run time for the main lighting unit with lights on the highest setting. The run time is defined as the time until the output is 70% of the initial, stabilized output. Lighting full battery run time estimates do not account for mobile phone charging or other auxiliary loads. 8
  • Notes About System Performance N/A
Main Unit Battery
  • Main Unit Battery Chemistry Li-ion
  • Main Unit Battery Voltage [V] 3.6
  • Main Unit Battery Capacity [Ah] 2.6
Ports
  • Number of USB Ports 1
  • Number of Barrel Jack Ports 0
  • Number of Cigarette Lighter Ports 0
  • Other Ports and Number of Each 0
  • Notes About Ports N/A
Testing Information
  • Quality Standards tooltip The version of quality standards that the product was evaluated towards. IEC TS 62257-9-8
  • Certification Status VeraSol Certified
  • Certification Expiration Date [MM/DD/YYYY] tooltip Indicates the date that the product's certification validity ends. 1/31/2025
Manufacturer Information
  • Contact Information benedicte.rouillon@totalenergies.com
  • Website www.totalenergies.com
  • Co-Branded tooltip Co-branded products reference the results of a fully-tested product and are the same product with a different brand name. No
  • Notes About Co-Branding N/A
Other Notes
  • Other Notes on Testing or the Product N/A
