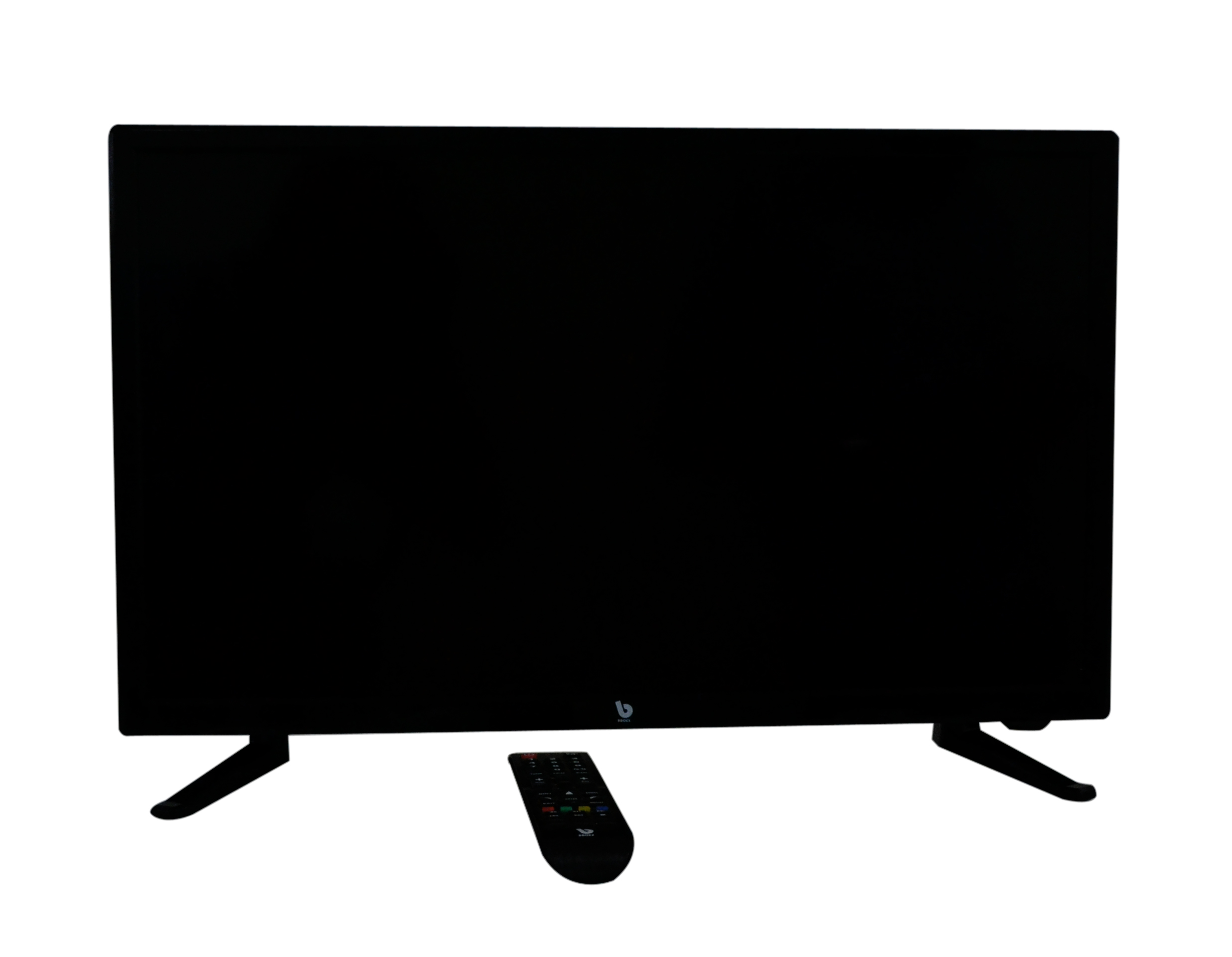

Bboxx Ltd. | 24" LED TV

Return to the Page Header

Snapshot Details

  • Model Number: 24" LED TV
  • Diagonal Screen Size [in]: 23.5
  • Power Supply Type: DC
  • Nominal Conditions: On Mode Power Consumption [W]: 12.1
  • Nominal Conditions: On Mode Average Power per Screen Size [W/cm2]: 0.008
  • Luminance Home Picture Mode [Cd/m2]: 65
  • Retail Price [USD]: N/A
Product Information
  • Brand tooltip Product brand name as listed on consumer-facing materials, such as product package, nameplate, or product specification sheet Bboxx Ltd.
  • Product Type tooltip Type of display technologies the product uses, ie LCD display with LED backlit or CCFL-backlit technology LED-backlit LCD Display
  • Model Number tooltip Model number as listed on consumer-facing materials, such as product package, nameplate, or product specification sheet 24" LED TV
  • Diagonal Screen Size [in] tooltip Size of a TV screen, described by the length of its diagonal 23.5
  • Power Supply Type DC
  • Manufacturer tooltip Company that manufactured the product Bboxx
  • Country of Manufacture tooltip Country where the product was manufactured China
  • Warranty [months] tooltip Length of warranty provided by a manufacturer, distributor, or retailer Not stated
  • Rated Input Voltage [V] 12
Display
  • Backlight Technology LED
  • Lines of Resolution: Horizontal [pixels] 1366
  • Lines of Resolution: Vertical [pixels] 768
  • Aspect Ratio 16:09
  • Viewable Screen Area [cm2] 1521
On Mode Power Consumption
  • Nominal Conditions: On Mode Power Consumption [W] tooltip Amount of power required to operate the product, measured in the active-use “On” mode 12.1
  • Nominal Conditions: On Mode Average Power per Screen Size [W/cm2] tooltip TV efficiency, defined as the average amount of power consumed per square centimeter of the screen size A lower value means higher efficiency 0.008
  • Nominal Conditions: Maximum On Mode Power [W] tooltip Maximum amount of power required to operate the product when the product’s volume and brightness are set at maximum levels 13.4
  • Over-Voltage Conditions: On Mode Power Consumption [W] tooltip Measured during voltage fluctuation conditions, eg during battery charging and discharging cycles Product is tested with an increased voltage (15% increase from the manufacturer’s rated input voltage) 12.6
  • Under-Voltage Conditions: On Mode Power Consumption [W] tooltip Measured during voltage fluctuation conditions, eg during battery charging and discharging cycles Product is tested with a decreased voltage (15% decrease from the manufacturer’s rated input voltage) 10.7
  • Post Environment: On Mode Power Consumption [W] tooltip Measured after the product is exposed to 40°C ± 2°C temperature and 93% ± 3% relative humidity for a minimum of 24 hours, replicating environmental factors that off-grid products are typically used in 12.1
Standby Mode Power Consumption
  • Nominal Conditions: Standby Mode Power Consumption [W] tooltip Amount of power required when the product is on standby mode (when it is plugged in but turned off) 0.14
  • Over-Voltage Conditions: Standby Mode Power Consumption [W] tooltip Amount of power required when the product is on standby mode, measured in over-voltage conditions (15% increase of rated input voltage) 0.15
  • Under-Voltage Conditions: Standby Mode Power Consumption [W] tooltip Amount of power required when the product is on standby mode, measured in under-voltage conditions (15% decrease of rated input voltage) 0.13
  • Post Environment: Standby Mode Power Consumption [W] tooltip Amount of power required when the product is on standby mode, measured after 24 hours of environmental exposure 0.14
Luminance
  • Luminance Home Picture Mode [Cd/m2] tooltip Brightness of display in “Home Picture” modes; Larger values mean brighter 65
  • Luminance Retail Picture Mode [Cd/m2] tooltip Brightness of display in “Retail Picture” modes; Larger values mean brighter 65
Viewing Angle
  • Horizontal Viewing Angle [degree], tested at 1/2 luminance tooltip Angle at which users can still view the display clearly and an indication of the display quality 100
  • Horizontal Viewing Angle [degree], tested at 1/10 luminance tooltip Angle at which users can still view the display clearly and an indication of the display quality 161
  • Vertical Viewing Angle [degree], tested at 1/2 luminance tooltip Angle at which users can still view the display clearly and an indication of the display quality 95
  • Vertical Viewing Angle [degree], tested at 1/10 luminance tooltip Angle at which users can still view the display clearly and an indication of the display quality 161
Ingress Protection
  • Ingress Protection Rating [IP number] tooltip Rates the effectiveness of the sealing of electrical enclosures against intrusion from foreign bodies (eg fingers, tools, dirt, etc) IP30
Connectivity
  • RF in Yes
  • HDMI in Yes
  • VGA in Yes
  • Component Video in Yes
  • Composite AV in Yes
  • PC Audio in Yes
  • Headphone out Yes
  • Audio out: Analog No
  • Audio out: Digital Yes
  • USB in Yes
  • DC Power in Yes
  • AC Power in No
  • Other Connectivity Ports Yes
Product Quality Inspection
  • Is the TV of good build quality and free of any visible defects? Yes
  • Notes About Quality N/A
  • Is the TV clearly marked with a standard nameplate? Yes
  • Notes About Nameplate N/A
  • Does the TV's packaging include appropriate information? No
  • Notes About Packaging No product size, gross dimensions or date of manufacture
  • Does the TV come with appropriate documentation? No
  • Notes About Documentation No quality assurance certificate or warranty information
Off-Grid Compatibility
  • Is the TV able to function properly during and after the voltage fluctuation test? No
  • Notes About Voltage Fluctuation Test At -15% of nominal voltage (10.2V) the picture was ok but there was no sound. The sound needed 10.6 volts to work correctly.
  • Does the TV have its own low voltage disconnect (LVD) & reconnect (LVR) circuit or similar automatic shutdown mechanism to protect batteries from unintended drainage? No
  • Notes About LVD and LVR Test As the voltage reduced the sound went off at 10.3 volts and the picture disappeared at 9.8 volts and Standby mode was entered at 4.2 volts. When the voltage was increased, the set would come out of standby and function normally when the voltage rose above 10.6 volts. This was not considered to be a correctly operating LVD/LVR function due to the very low voltage before stby was entered.
  • Does the TV have a timer function which enables automatic shutdown after a set period of time? Yes
  • Is the LVD/LVR/timer function adequately described in the user manual or product packaging? No
  • Does the TV have any power saving features? Auto Standby
Sampling And Testing Information
  • Sample Location tooltip Where the product was randomly sampled from Manufacturer Warehouse
  • Retail Price [USD] tooltip Retail price of the product, documented at the time of purchase N/A
  • Test Completion Date [MM/DD/YYYY] 7/28/2017
  • Test Laboratory Name Intertek UK
Awards
  • Global LEAP Awards tooltip Whether product was identified as a Winner or Finalist of the Global LEAP Awards Finalist (2016-17)
